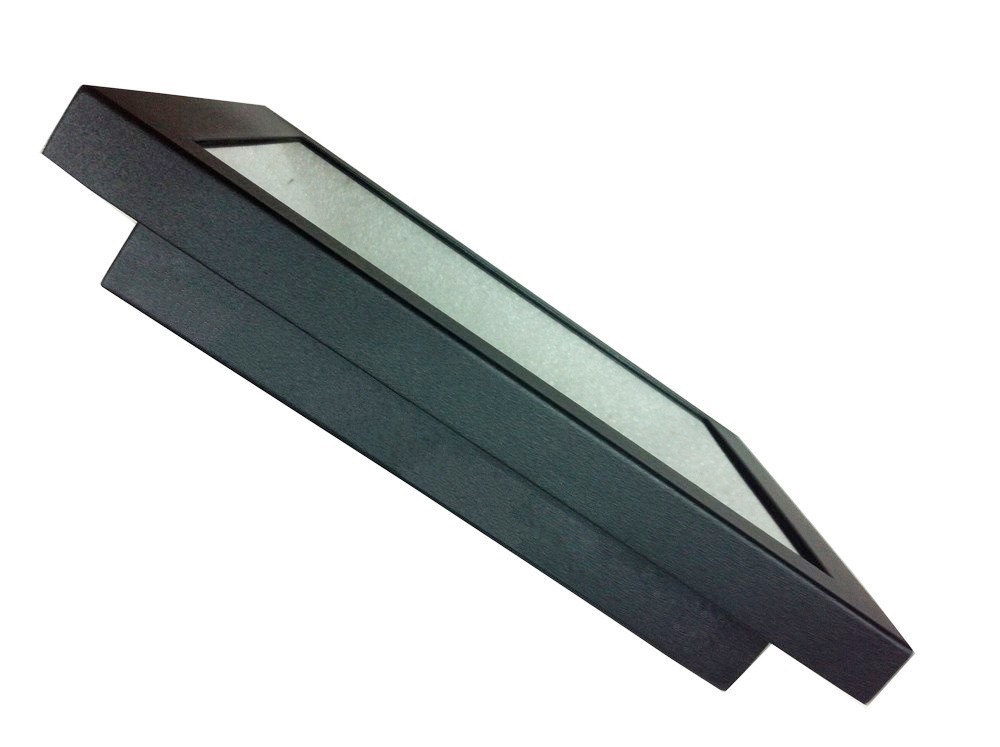

19 inch Open Frame Touch Monitor
Aluminum alloy frame,8ms Response Time
With standard wall mount bracket, and VESA holes at the back,
-can be customized as open frame design
Energy Efficient, Low Power Consumption
Superior viewing angles, contrast ratio and brightness
4/5 wire resistive,SAW,IR Optical touch screen (can be selected)
Our products have passed CE, FCC, RoHS certification!
Produt Specification
| Model Number |
COT190-APF01 |
| Display type |
TFT LCD/LED panel |
| Screen Ratio |
4:3 |
| Resolution |
1280X1024 |
| Active area |
380X305(mm) |
| Brightness |
300cd/m2 |
| Contrast Ratio |
800:1 |
| Support color |
16.7M |
| Response time |
8ms |
| Pixel Pitch |
0.297x0.297mm |
| Viewing Angle |
Horizontal(L/R):85°/85° Vertical(Up/Down):80°/80° |
| Video input |
DVI,VGA |
| Scan Frequency |
Horizontal:30~80KHz ,Vertical: 56.3~75Hz |
| Power Input |
Support AC 100 ~ 240V,50 ~ 60Hz,DC12V-3A |
| Environment |
Operating temperature:0 to 50°C Storage temperature:-20 to 60°C |
| Operating humidity:20% to 80% Storage humidity:10% to 90% |
| Mean Time Between Failure (MTBF) |
30,000 hours |
| Backlight working life(Typ.) |
50,000 hours |
| Touch screen Type |
4/5 wire resistive,SAW,IR Optical touch screen (can be selected) |
| Touch life |
Over 5,00 million times |
| Touch object |
Finger or touch pen |
| Touch screen interface |
USB or RS232 interface |
| Power consumption |
Max 28W |
| Certificates |
CE, FCC |
| Button |
POWER,MENU,AUTO,UP,DOWN |
| Warranty |
1 year |
